注意：安装时候，会提示安装文件错误，不用理会，忽略即可，不会影响正常使用
安装文件下载：
CONTENTS:
-------
1. System requirements
2. Documentation
3. Program composition
4. Choosing the connection
5. Online RS232/485 to the drive
6. Online via SERCANS on Windows 95
7. Causes for noise in communication
8. Malfunction in dialog "Motor parameters"
9. Crash when opening a file selector
10. Online via field bus
11. Simulation offline
12. Required user rights
13. Supported firmware online
14. Online via field bus supported firmware
15. Supported firmware offline
16. Support address
*** 1. System Requirements ***
- At least Intel 486 PC (Pentium 166 or higher recommended).
- Microsoft Windows 95, Microsoft Windows 98, Microsoft Windows NT 4.0,
Microsoft Windows 2000 or Microsoft Windows XP.
- At least 32 MByte memory.
- At least 60 MByte free space on fixed disk.
- To ensure a correct display, choose in
Display Properties->Settings->Font Size the setting "Small Fonts".
*** 2. Documentation ***
You can use the help function in DriveTop only when the documentation for
the used firmware is present on the system as well. If it is not, you can
assign other help systems with the menue item "Help->Settings". You can get
context sensitive help any time via the right mouse button, as long as the
help system is installed.
*** 3. Programm Composition ***
When you start DriveTop, various programs are started (DriveServer,
SERCOS DDE Server, OfflineServer), depending on the chosen communication type.
*** 4. Choosing the Connection ***
With drives of the Ecodrive and DIAX families, you can communicate online via
the RS-232 interface or via a SERCANS card. Offline, you can compose the desired
configuration of your equipment, and afterwards, you can create parameter files,
to load them online into a drive later.
*** 5. Online RS-232/485 to the Drive ***
When you have communication via the serial interface (RSKO protocol), the
DriveServer is started. In the DriveServer, the interface used for the
communication must be set. In the debug window of the DriveServer, the
communication over the serial interface can be monitored and recorded. If a drive
is to be addressed in an RS-485 bus, the RS-485 operation must be activated in
the DriveServer.
*** 6. Online via SERCANS on Windows 95 ***
To communicate via SERCANS online with drives on Windows 95, Windows Socket 2.0
must be installed. Otherwise an error message is displayed when communicating via
SERCANS indicating that the DdeServer cannot be started.
A free of charge download of the Windows Socket 2 Update is available from Microsoft:
http://www.microsoft.com/windows95/downloads
*** 7. Causes for noise in communication ***
To ensure an error-free communication with the serial interface, the FIFO buffer
for the interface in use must be deactivated:
- Windows 95 and Windows 98:
With "Settings->Control Panel->System->Device Manager->;Ports",
open the properties dialogue of the serial interface in use for the
communication (COM1 - COM8). In "Port Settings->Advanced",
deactivate now the FIFO.
- Windows NT 4.0:
Deactivate the FIFO with
"Settings->Control Panel->;Ports->Settings->Advanced".
- Windows 2000:
Deactivate the FIFO in
"Settings->Control Panel->System->Hardware->Device Manager->;Ports->
Port Settings->Advanced".
SIEMENS PG:
***********
Some Siemens PG's use Power Management. In order for DriveTop to be able to
communicate without errors to the drives using the serial interface, you must
disable the Power Management in the BIOS for these Siemens PG's (APM disabled).
LAPTOP:
*******
In order to prevent errors in the serial communication, some laptops require
that the battery power monitoring is disabled in the BIOS.
*** 8. Malfunction in dialog "Motor parameters" ***
If it is not possible to select motor type keys in the dialog
"Drive functions->Motor parameters" under the tab "Indramat motor",
database access components may be not correctly installed.
Cure: Start the program mac_typ2.exe in the subdirectory DriveTop\14V04\MDAC.
Then restart the DriveTop setup and select the option "repair".
*** 9. Crash when opening a file selector ***
DriveTop crashes on some US Windows 95 systems in the menuitem "File->Open project"
and in the dialogs "File->Load", "File->Save" in the function "Change".
The cause is a incompatible system dll (comdlg32.dll).
This dll can be changed by executing the setup
"Comdlg Bugfix\setup.exe" on the DriveTop CD.
Attention: The replacement of the incompatible Dll version by the compatible Dll
belonging to this system could affect functions of other programs.
*** 10. Online via field bus ***
DriveTop is able to communicate via Profibus. In this case the communication takes
place via the Hilscher Communication Interface PCMCIA PROFIBUS-DP/FMS master.
The precondition is a correctly configured Hilscher CIF-Device driver.
This type of communication, however, is only supported with field bus drive firmware
releases higher than FWA-ECODR3-FGP-03V24-MS and FWA-DRIVE*-FGP-20V12-MS.
If a valid parameter channel has been configured on the Hilscher Communication Interface
PCMCIA PROFIBUS-DP/FMS master, DriveTop will use this valid parameter channel.
But if there isn't any parameter channel valid, DriveTop will use a temporary parameter
channel for communication. The value of the parameter P-0-4083 "Length of parameter
channel in DP" is irrelevant in this case and can be zero.
*** 11. Simulation Offline ***
During a simulation offline, the DriveServer is started. It contains an offline
configurator, with which you can create projects. A project can comprise up to
127 different drives. Afterwards, you can open existing projects in DriveTop.
During the offline configuration, you set all the hardware components like
amplifier, motor type, as well as the used firmware. The offline simulation
allows you to create parameter backups, which you can load again in an online
session.
*** 12. Required user rights (NT, 2000, XP) ***
DriveTop requires write access to the registry below HKEY_LOCAL_MACHINE\Software\Indramat.
Under Windows NT, 2000 and XP, write access normally is only given to users
having administrator or main user rights. Users who need DriveTop should therefore
be admitted to one of these groups. If this is impossible the administrator has to give
write access to the above-mentioned key and its subkeys (e.g. by means of regedt32.exe).

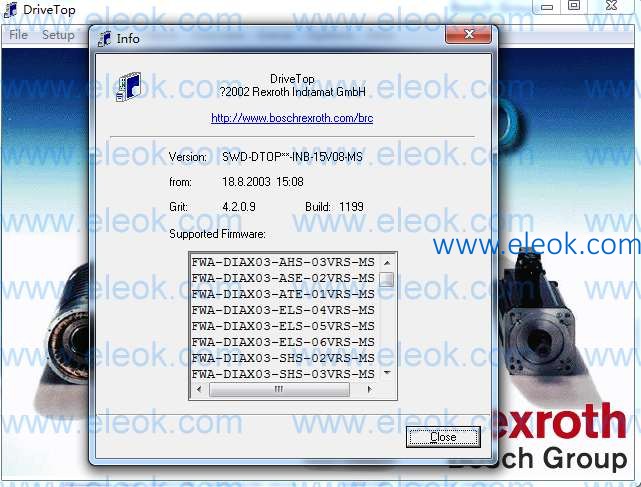

*** 13. Supported Firmware Online ***
- FWA-ECODRV-SSE-02VRS-MS
- FWA-ECODRV-SSE-03VRS-MS
- FWA-DIAX03-AHS-03VRS-MS
- FWA-DIAX03-ASE-02VRS-MS
- FWA-DIAX03-ATE-01VRS-MS
- FWA-DIAX03-ELS-04VRS-MS
- FWA-DIAX03-ELS-05VRS-MS
- FWA-DIAX03-SHS-02VRS-MS
- FWA-DIAX03-SHS-03VRS-MS
- FWA-DIAX03-SSE-01VRS-MS
- FWA-DIAX03-SSE-02VRS-MS
- FWA-DIAX03-SSE-03VRS-MS
- FWA-DIAX03-STE-01VRS-MS
- FWA-DIAX04-AHS-03VRS-MS
- FWA-DIAX04-ASE-02VRS-MS
- FWA-DIAX04-ATE-01VRS-MS
- FWA-DIAX04-ELS-05VRS-MS
- FWA-DIAX04-SHS-02VRS-MS
- FWA-DIAX04-SHS-03VRS-MS
- FWA-DIAX04-SSE-01VRS-MS
- FWA-DIAX04-SSE-02VRS-MS
- FWA-DIAX04-SSE-03VRS-MS
- FWA-DIAX04-STE-01VRS-MS
- FWA-ECODR3-FGP-01VRS-MS
- FWA-ECODR3-FGP-02VRS-MS
- FWA-ECODR3-FGP-03VRS-MS
- FWA-DRIVE*-FGP-20VRS-MS
- FWA-ECODR3-SGP-01VRS-MS
- FWA-ECODR3-SGP-03VRS-MS
- FWA-DRIVE*-SGP-20VRS-MS
- FWA-ECODR3-SMT-01VRS-MS
- FWA-ECODR3-SMT-02VRS-MS
- FWA-DRIVE*-SMT-20VRS-MS
- FWA-ECODR3-MGP-01VRS-MS
- FWA-INDRV*-MTH-01VRS-MS
- FWA-SERCAN-SER-02VRS-MS
- FWA-SERCAN-SER-03VRS-MS
- FWA-SERCAN-SER-04VRS-MS
- FWA-SERCAN-SER-05VRS-MS
*** 14. Online via field bus supported firmware ***
- FWA-ECODR3-FGP-03V24-MS and higher
- FWA-DRIVE*-FGP-20V12-MS and higher
*** 15. Supported Firmware Offline ***
- FWA-DIAX03-ASE-02VRS-MS
- FWA-DIAX03-AHS-03VRS-MS
- FWA-DIAX03-SHS-03VRS-MS
- FWA-DIAX03-SSE-03VRS-MS
- FWA-DIAX04-ASE-02VRS-MS
- FWA-DIAX04-AHS-03VRS-MS
- FWA-DIAX04-SHS-03VRS-MS
- FWA-DIAX04-SSE-03VRS-MS
- FWA-ECODR3-FGP-01VRS-MS
- FWA-ECODR3-FGP-02VRS-MS
- FWA-ECODR3-FGP-03VRS-MS
- FWA-ECODR3-FGP-20VRS-MS
- FWA-ECODR3-SGP-01VRS-MS
- FWA-ECODR3-SGP-03VRS-MS
- FWA-ECODR3-SGP-20VRS-MS
- FWA-ECODR3-SMT-01VRS-MS
- FWA-ECODR3-SMT-02VRS-MS
- FWA-ECODR3-SMT-20VRS-MS
